EZ Robot Education Starter Pack
EZ Robot Revolution Combo bundle teaches robotics using Science, Technology, Engineering, Art, and Mathematics.World’s easiest and most powerful robot software designed for EZ-Robots, scales from beginner to advanced users. This software introduces amazing features that will teach students the skills needed to succeed in the future!
- 1 x JD Humanoid
- 1 x Six Hexapod
- 1 x Roli Rover
- 4 x Clip'n'Play Adapter Plate
- 8 x Extension Cube
- 8 x Extension Block
- 12 x Extension Cable
- 1 x HDD Servo (for replacement)
- 1 x Micro HDD Servo (for replacement)
- 1 x Ultrasonic Distance Sensor
- Unlimited EZ-Builder Software Installations
Add EZ-Robot’s Curriculum that provides lesson plans and projects for $999.99. The EZ-Robot curriculum is a one-time fee and works for the entire school with no need to purchase multiple site licenses.
A humanoid that walks right away.
JD includes apps for walking, dancing, and even playing the piano! The EZ-Builder Software includes an amazing and easy-to-use animation GAIT feature called Auto Positioner. This allows you to create movement animations for your robot to walk, dance or give high fives! The animations can be triggered by other input controls, such as Speech Recognition, Vision Tracking, Joysticks, Wii Controllers, and more.
Interactive and social.
JD's eyes have 18 RGB LEDs (9 per eye), which can be configured to animate patterns with 1 million color combinations. A robot wouldn't be a robot without a camera for vision recognition. So, we installed our a camera in the head which can track and learn colors, objects, faces, motion, glyphs, and more.

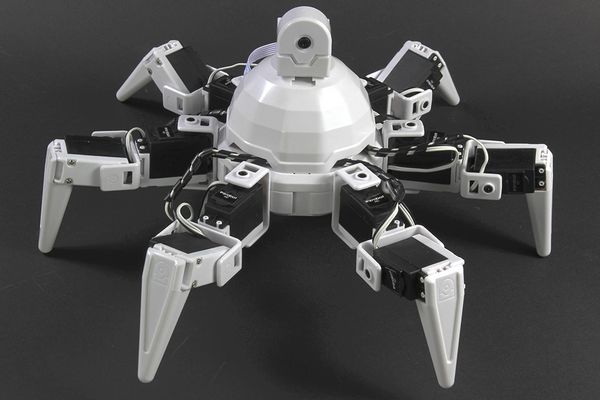

Six is your Hexapod.
A hexapod is a robot that has six legs, giving it more stability and freedom to move than ordinary robots. It needs only three legs to balance while standing, and can walk with just four. Its other legs can reach for new foot positions, or manipulate objects!
EZ Robots are visual learners.
The camera features advanced vision learning, detection and tracking abilities. Your EZ Robot can interact with objects, colors, faces, motion, glyphs, and QR codes!
Grippers provide interaction.
The compact grippers are powered by strong metal geared servo motors, allowing your robot to interact with soft, light objects. We recommend colored foam balls – the kind you can find at any value, hobby, or department store. They are perfect for your robot to grip and interact with.
Customize your robot with ez-bits. All ezrobot Revolution parts include ez-bit connections. Simply slide the tab into the slot to establish a secure bond. The parts may be separated by sliding them apart. Multiple ez-bits can be connected together to make arms, legs, or anything else you dream up!
Education in the classroom and at home.
In the classroom or at home, EZ Robot Revolution has a big impact on STEM education. Learn about robots and have fun doing it! With hundreds of tutorials no questions are left unanswered. Personalizing your EZ Robot with new behaviors will teach students how robots walk, see, hear and interact with their surroundings to solve problems using a combination of science, technology, engineering and mathematics. Visit the EZ-Robot School!
Live Streaming Video.
Give your robot or IoT project the gift of sight with live real-time streaming video. View the video on your mobile device or PC over the WiFi connection of the EZ-B.
Streaming Audio - Music, voices or sound effects
Robots need a voice! The EZ-B has a built-in speaker to stream audio in real-time from the PC or Mobile Device. Play music, sound effects or even text-to-speech through your robot or IoT project.

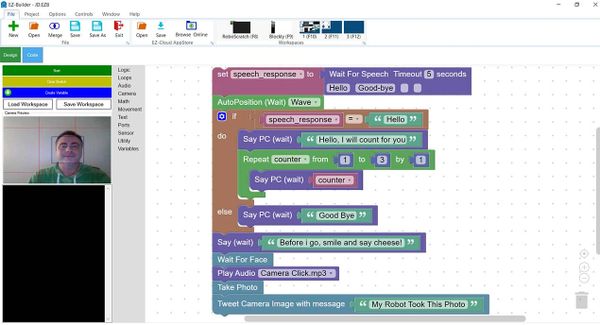

Software that's easy to use.
If hardware is the heart of your EZ Robot, then software is the soul. Introducing ez-builder, the world's easiest, most powerful, and most scalable robotics software. EZ-builder takes a productive and unique approach to programming your robot. Simply add behaviors such as camera tracking, speech recognition, Wii controllers, GPS, gait animator, and hundreds more!
Teach Your Robot Animations
Like a flip book, the Auto Position in EZ-builder is used to animate gaits of your EZ Robot. It's like magic! Simply move your robot into positions to create an animation routine. Playback animations based on triggers, such as when the robot sees your face or responds to a voice command. It is now easier than ever to teach your robot how to move, dance, climb stairs and more!

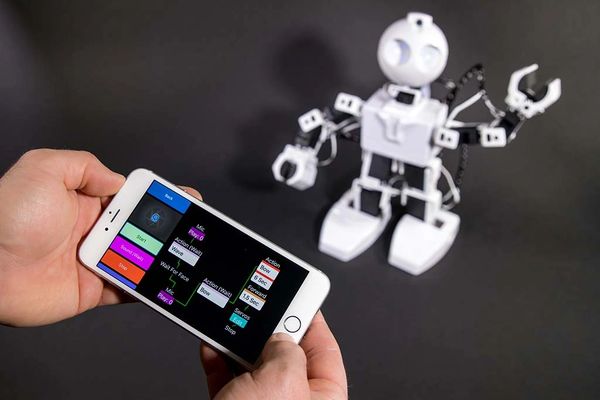

Use an Android or iOS mobile device with apps from our ez-cloud app store to control your robot or IoT project. Have an idea for a robot app? Create a robot app and share with it the world. EZ Robot makes everyone an app developer!
3D Printable Open Source Parts
The 3D printable CAD files of Revolution Robots and ez-bits are available in the CAD tab of each product, in the 3D Printing Section, or in the ez-builder software. 3D print your own robot parts or ask our community to 3D print the parts you choose. Create and share your own designs with other EZ Robot users from around the world!
The ez-bv4/2 is your robot's high tech brain.
At the heart of over 20,000 robots worldwide is the ez-bv4/2. The world's most powerful and compact robot brain, suitable for all skill levels – from beginner to advanced. The stylish white plastic shell protects the speaker and electronics, with a speaker chamber for clear, enhanced audio. For advanced users, the ez-bv4/2 may be removed from its casing and mounted directly in your custom robot. [Learn More]
- Compact size (5cm x 5cm x 3cm)
- Wi-Fi connectivity (ad-hoc/infrastructure/WEP/WPA/WPA2)
- 220MHz 32-bit total processing with two 32-bit ARM Cortex processors
- Small size (2.1" x 2.2")
- Embedded web & telnet server
- Energy efficient digital switching power supply
- Re-settable fuse protection
- Reverse polarity protection
- Amplified speaker for streaming speech and music audio
- 1 x real-time EZ-B v4 Camera port
- 8 x 5 volt tolerant analog (ADC) ports
- 24 x 5 volt tolerant digital ports (servos, PWM, and more)
- Supports up to 73 servos (combining PWM and Dynamixel)
- Dynamixel servo support
- 3 x I²C ports
- 3 x high speed UART ports
- Battery and temperature monitor
Heavy duty digital servo motors
Inside the HDD servo-motors are full metal gears and real ball bearings that lift 19 kg/cm! The metal gear and ball bearing internals will withstand a high load. These servos have enough strength to let your robots walk, move or lift. We engineered these servos to be tough from years of R&D, check out our demonstration video!
- Operating speed: 0.22±0.01 sec/60° (7.4v)
- Running current: 1400±30mA (7.4v)
- Stall torque: 19±0.20kg·cm (7.4v)
- Stall current: 3000±50mA (7.4v)
- Running life: > 180,000 Turns
- Temperature range: -10C to +50C
- Operating voltage: 4.8V to 8.4v
- Dual ball metal bearing
- All metal gears
- Connector wire length: 32cm
- Futaba 3f (25 teeth) for driving spline/shaft
- 6.2mm C1 standard spline (including teeth)
The future is green.
You care about energy consumption with electronics. That's why ezrobot designed an innovative low energy digital switching power supply for our products. While most electronics dissipate heat to lower voltage, our products use an energy efficient power supply which generates practically no heat! Welcome to the future! :)
How EZ-Robot's Work
EZ-Robot Revolution introduces the world's easiest, most powerful and creative robots for R&D, experimentation and STEM education. Revolution is modular, so there is no limit to your creativity. These robots are assembled with ez-bits using clip’n’play technology for endless configurations!
At the heart of your Revolution Robot is our exceptionally compact, intelligent and powerful EZ-B family of robot brains. The EZ-B provides features to your robot thought only possible in science fiction with walking, talking, and learning capabilities. The EZ-B v4 brain gives robot creations the ability to learn, interact and play. Meanwhile, the EZ-Robot camera equips robots with the ability to recognize faces and track objects. Using a PC or mobile device, control EZ-Robots over a Wi-Fi connection. The EZ-B brain leverages the power of Cortex ARM processors. The EZ-Robot brain is expandable to grow with your robot by supporting dozens of additional sensors, displays and servo-motors.
EZ-Robot is first in the industry to successfully provide a complete unified robot platform which combines powerful hardware, clip’n’play modularity and innovative software that pushes the limits of robot technology. The EZ-Builder software controls, programs and shares EZ-Robot Revolution behaviors, configurations and personalities. Customize Revolution Robot with EZ-Builder’s easy-to-use 3D graphical designer and share the configuration on the EZ-Cloud App Store within the globally community. Programming an EZ-Robot is graphical, easy and scales between beginner and advanced users. You can even make your own mobile apps with a simple drag-and-drop interface which run on your iOS or Android device, instantly. There is absolutely nothing else like it!
A future of robotics needs education, today. Revolution isn't limited to fun and games, EZ-Robot empowers educators to teach real-world robot applications which give students a leading-edge advantage in the up and coming robot industry.
What Makes EZ-Robot Different?
EZ-Robot products offload processing to more powerful third party CPUs, such as an iOS/Android mobile device, tablet, or PC. This approach provides users with an easy-to-use and feature rich development environment which, unlike competitive products, is not limited to programmers. This approach not only saves weight and space on the robot chassis, but also power consumption. This is an efficient approach to direct battery consumption where it is needed on a robot most... to its motors.
Scales With New Technology
Another benefit with offloading processing is that product features mature in parallel with dependent device technology growth (PCs, Mobile Devices). This offers EZ-Robot parallel development initiatives in conjunction with supporting industries, which leverage EZ-Robot’s processing capabilities that result in additional features and increased usability. In short, new EZ-Robot features are added as computers, mobile devices and software evolves.
Point & Click Programming
Using PCs and Mobile Devices for the Robot GUI offers high level (easy) and low level (difficult) programming features, neither of which sacrifice functionality. This enables creative designers, dabblers and programmers to produce robots which would otherwise require teams of programmers and engineers years of work.
Competitive products which offer embedded device programming ability (i.e. microcontrollers) require advanced programming experience, which contradicts educational and mass-adoption initiatives – not everyone is a programmer or has an interest in programming. While embedded device programming has historically been a familiar method in robotics, today’s highly computational and feature-rich products require distributed processing. This methodology splits the robot industry into several fields and categories. Similar to other developed industries (automotive, computers, medical), robotics is splitting into many fields of discipline. Each discipline’s responsibility is becoming too advanced for an individual to be great at all of them. EZ-Robot’s user workflow was architected for this approach. While competitive robot products focus on either programming (microcontrollers) or usability (toys), EZ-Robot differs by providing components for all disciplines within the industry of robotics.
