Emblaser 2 Laser Cutter & Engraver
Perfect for the classroom
Designed, engineered and proudly made in Australia, the Emblaser 2 is the second generation desktop laser cutter and engraver that is a perfect combination of ease-of-use, size, power and price. Designed to be user friendly, easy to setup, safe and easy to use in any classroom.
The Emblaser 2 can cut, mark or engrave cloth, cardboard, paper, leather, wood, plastics and so much more.
Safety first
Traditionally laser cutters have only been available for specialized learning areas, but the Emblaser 2 is a Class 1 laser making is safe to use in any classroom when combined with it’s air filtration unit.
The AS/NZS IEC 60825 classification divides lasers into 6 classes, with 6 being the highest and most harmful. The Emblaser 2 is a Class 1 device considered the safest and does not permit human access to laser radiation during operation.
Give depth to your work
A true 3D cutting & engraving machine, the Emblaser 2 allows you to achieve different levels of depths and details.
It gives your piece that extra dimension by giving you the control to adjust the height of the laser while cutting. Cut through thicker materials by setting your laser to automatically lower with multiples passes.
Safety

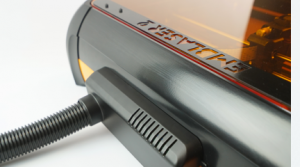

Material ignition alert. Inbuilt fume extractor to vent fumes outdoors or add the Fume Filter System to safely filter fumes for indoor use.
Precise Alignment
Use the built-in camera to overlay your design onto your project. Take out the alignment guesswork
3D Engraving
Create stunning 3D engravings with depth or adjust sharpness to create sharp lines or soft fills with the automatic Z axis of the head.
Common Materials
| Thickness | Engraved | Cut | Notes | |
|---|---|---|---|---|
| Fabric – Cotton | 3mm | Y | Y | |
| Fabric – Felt | 6mm | N | Y | All colors except white. |
| Leather – Brown Vegetable Tanned | 4mm | Y | Y | Treatment & color dependant. Air-Assist recommended. |
| Paper/Card – Corrugated Cardboard | 6mm | Y | Y | |
| Paper/Card – Pasteboard | 2.6mm | Y | Y | |
| Paper/Card – Plain Paper | 3mm | Y | Y | Any color. |
| Plastic – Acrylic Black | 5mm | Y | Y | |
| Plastic – Acrylic Green, Red Yellow | 3mm | Y | Y | |
| Plastic – Acrylic Translucent (tinted) | – | Y | N | |
| Plastic – Acrylic Blue | – | Y | N | |
| Plastic – Acrylic Transparent & White | – | N | N | |
| Plastic – Polypropylene | 3mm | Y | Y | Air-Assist recommended. |
| Plastic – Styrene | 1.5mm | Y | Y | |
| Wood – Birch Plywood | 6mm | Y | Y | |
| Wood – Balsa | 10mm | Y | Y | |
| Wood – Hardwood Oak | 3.8mm | Y | Y | |
| Wood – MDF | 6mm | Y | Y | |
| Anodised Aluminium | – | Y | N | |
| Slate | – | Y | N | |
| Corkboard | 3.0mm | Y | Y | Air-Assist required. |
| Rubber | 2.0mm | Y | Y | Air-Assist recommended. |
Technical Specifications
| Dimensions | 540mm x 720mm x 200mm (21.25″ x 28.35″ x 7.8″) |
| Material Capacity | 500mm x 300mm x 50mm (19.66″ x 11.81″ x 1.97″) |
| Optics – Focus | Factory pre-focused |
| Laser Unit Type | Laser Diode — 5+ watts |
| Classification | Class 1 — The safest laser device rating available. |
| Cooling | Air-cooled — No water pump required |
| Hardware | • 3D Cutting & Engraving, fully software controlled • Air-Assist System installed • Camera for material alignment |
| Connectivity | Wifi & USB |
| Fume Extraction | Built-in fan and external hose |
| Lighting | Internal Workspace |
| Software | LaserWeb (Open Source; PC, Mac, Linux) |
| Warranty | • 1-Year Limited Warranty • 6-Month Warranty on Laser Diode |
