EinScan TranScan-C 3D Scanner
$4,899.00

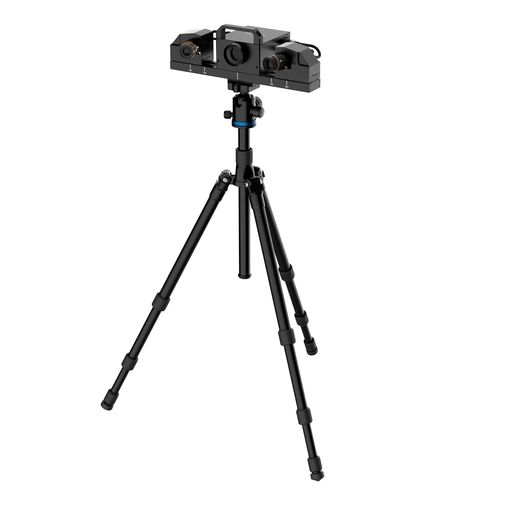

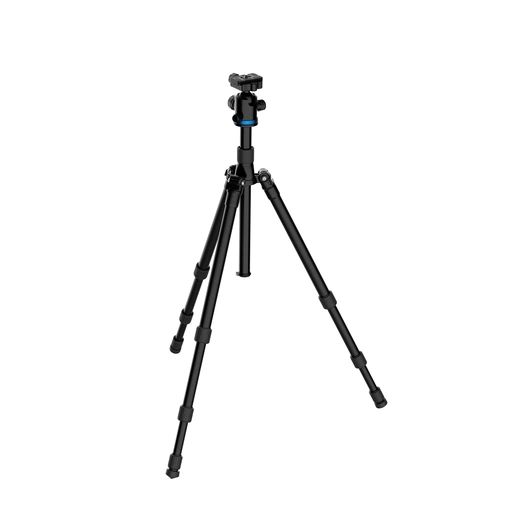

SHINING3D developed the Transcan C as a professional-grade 3D scanner that captures exceptionally high resolution and accurate scans of objects from small to medium sized in various industry. In addition, the 12 MP cameras produce rich and detailed textured 3D model which give an intuitionistic image of the physical object. Comes with tripod and turntable.
Dual Scan Range Ready-to-Use -- The slide-rail design allows for the scanning range to switch between 150 mm x 96 mm and 300 mm x 190 mm to meet variable objects sizes.
The algorithm of multi-resolution fusion allows a mixture of 3 levels of resolution of high, med or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.
Two 12 MP color cameras are installed to capture a detailed 24-bit color map, representing a true-color of the physical object. It gives an ideal solution to visual display.
High-Accuracy Scan Data -- The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuble to many applications for measurement.
Micro Details Reproduction -- The minimum point distance can reach 0.0375 mm (resolution) to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.

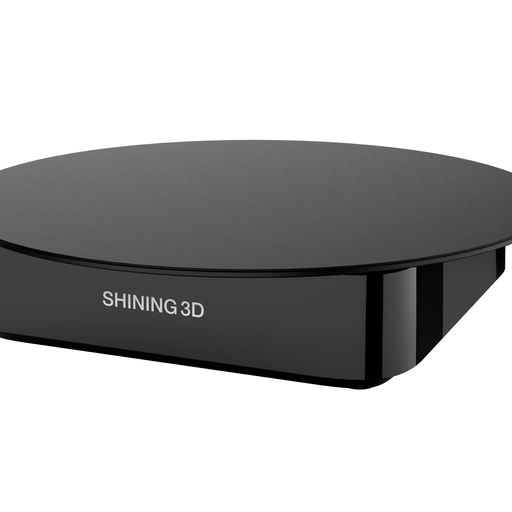

The scanning process is fully automatic with the turntable. This combined with our software's stitching algorithm, provides efficient acquisition of 3D data without manual intervention.
Specifications
| Light Source | White LED Light | |
|---|---|---|
| Calibration Mode | Manual calibration | |
| Scan Mode | Structured-light scan with automatic turntable | |
| Scan Range | 150 mm x 96 mm | 300 mm x 190 mm |
| Single Shot Accuracy | 0.035 mm | 0.05 mm |
| Scan Speed | <70 s (8 scans/turn without texture); <3 s (single frame without texture) | |
| Texture Color | RGB 24-bit color | |
| Texture Map | 12 mega pixels, high fidelity color | |
| Working Distance | 260 mm | 480 mm |
| Point Distance | 0.0375 mm；0.075 mm；0.114 mm | 0.075 mm；0.154 mm；0.23 mm |
| EAN/UPC code | 6970163084336 |
