EinScan-SP 3D Scanner with Turntable

$2,599.00 $2,199.00

EinScan SP (Platinum)

  • Ensures Designers Access to a Fast, Accurate & Reliable 3D Digital Experience
  • Faster Scanning & Higher Accuracy

  • EinScan-SP Provides a Higher Accuracy of 0.05mm for a Single Scan

The EinScan-SP (Platinum) 3D scanner creates printable 3D models with high accuracy for a range of creative 3D printing applications. The  scanner is a perfect fit for engineers, designers, and higher-learning educators looking to capture high-detail 3D images. The full-color texture scanning option is a perfect fit for animation and graphic arts.  With a  low price point and fast, accurate scanning (~0.05 mm), the EinScan-SP delivers detail and performance similar to an industrial level scanner.

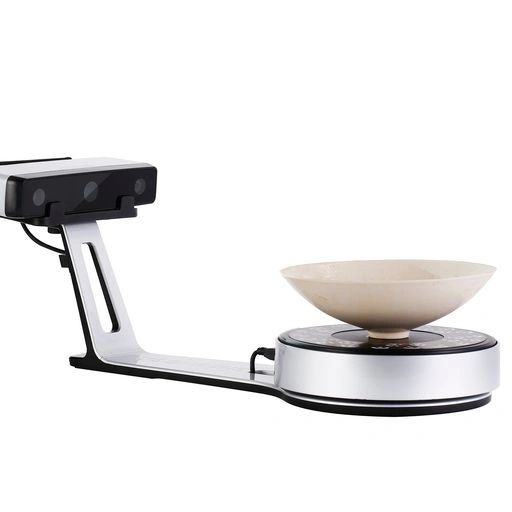

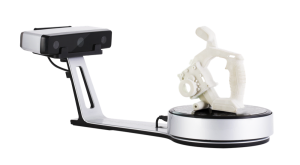

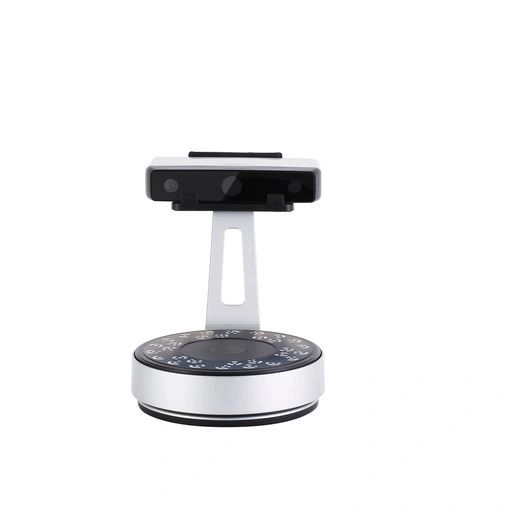

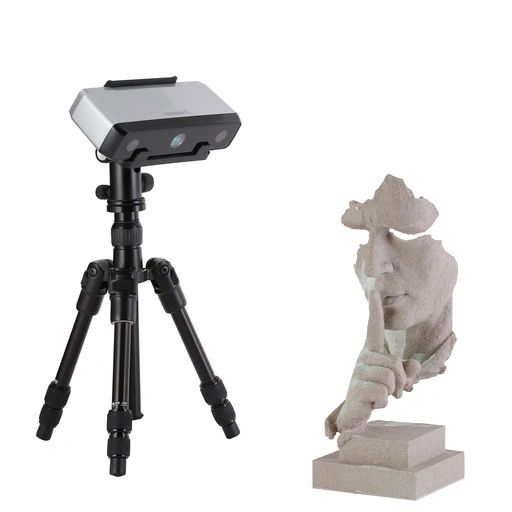

The EinScan-SP has both an automatic scan mode with an automated turntable and a fixed scan mode for larger objects. The SP is a white-light scanner using structured light or light phase shifting technology. This creates a scan that is highly accurate without the use of lasers which be dangerous to eyes.

Automatic scans take less than 2 minutes to complete, which is many times faster than similar desktop 3D scanners in the market with turntable scans. The EinScan-SP automatic scan mode allows a model to be scanned that is up to 200 x 200 x 200 mm in size. Fixed scan mode maximum size is 700 x 700 x 700 mm.

The EinScan-SP 3D Scanner comes with an Afinia, industry-leading 1 year warranty, parts and labor.  Afinia live technical support is provided by phone/email and is available Monday - Friday from 8 - 5pm Central Time.


System Requirements:
Windows 7, Window 8, Windows 10 (64-bit)

Minimum Computer Requirements:
Processor: Intel I5 CPU
RAM: 16 GB
Free Hard Drive Space: 1GB
Graphics Card: Nvidia series (GTX 660 or higher)
Graphics Memory: 2 GB minimum
USB Ports: Must have 1 USB 2.0 or 3.0 port

Specifications

Model EinScan-SE EinScan-SP
Scan Mode Fixed Scan Auto Scan Fixed Scan Auto Scan
Mode of Alignment Feature, Manual Turntable, Manual Feature, Markers, Manual Turntable, Markers, Manual, Turntable Coded Targets
Single Shot Accuracy ≤0.01mm ≤0.05mm
Min. Scan Volume 30 x 30 x 30mm
Range of Single Capture 200 x 150mm
Scan Speed <8 seconds <2 minutes <4 seconds <1 minute
Point Distance 0.17 – 0.2mm
Texture Yes
File Format OBJ, STL, ASC, PLY
Camera Resolution 1.3 Mega Pixels
Light Source White Lights
Stand-off Distance 290 ~ 480mm
Computer Requirements 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >8 G 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >16 G
Weight (unpacked) 2.5kg 4.2kg
Weight (packed) 4.9kg 7.0kg
Dimension 570 x 210 x 210mm
Power Supply 50W
Input Voltage DC: 12V, 3.33A
Calibration Board Standard HD
Turntable Standard Turntable with Markers
Load Capacity of Turntable 5kg
