EinScan-SE 3D Scanner with Turntable
$1,199.00
$999.00
EinScan SE (Elite)
- A Powerful Companion for Desktop 3D Printing Applications
- The Next Innovative Desktop 3D Scanner
- Easiest 3D Scanning Experience for Non-technical Users

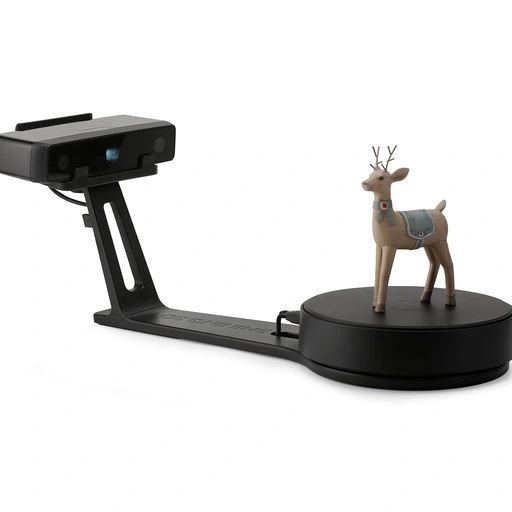

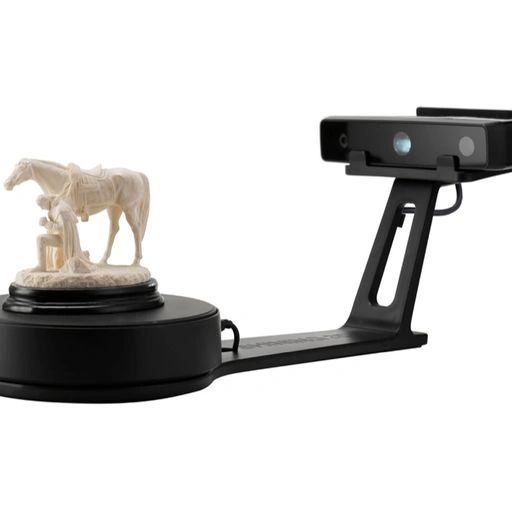

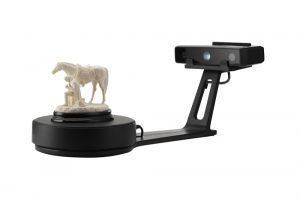

Shining EinScan-SE 3D Scanner with Turntable
The EinScan-SE 3D scanner creates printable 3D models with high accuracy for a range of creative 3D printing applications. The scanner is a perfect fit for educators, designers, and home hobbyists looking to expand the capabilities of their 3D printer. The full-color texture scanning option is a perfect fit for animation and graphic arts. With a low price point and fast, accurate scanning (~0.1 mm), the EinScan-SE delivers detail and performance even for non-technical users.
The EinScan-SE has both an automatic scan mode with an automated turntable and a fixed scan mode for larger objects. The SE is a white-light scanner using structured light or light phase shifting technology. This creates a scan that is highly accurate without the use of lasers which be dangerous to eyes.
Automatic scans take three minutes to complete, which is many times faster than similar desktop 3D scanners in the market with turntable scans. The EinScan-SE automatic scan mode allows a model to be scanned that is up to 200 x 200 x 200 mm in size. Fixed scan mode maximum size is 700 x 700 x 700 mm.
The EinScan-SE 3D Scanner comes with an Afinia, industry-leading 1 year warranty, parts and labor. Afinia live technical support is provided by phone/email and is available Monday - Friday from 8 - 5pm Central Time.
System Requirements:
Windows 7, Window 8, Windows 10 (64-bit)
Minimum Computer Requirements:
Processor: Intel I5 CPU
RAM: 8GB
Free Hard Drive Space: 1GB
Graphics Card: Nvidia series
Graphics Memory: 1GB minimum
USB Ports: Must have 1 USB 2.0 or 3.0 port
Specifications
| Model | EinScan-SE | EinScan-SP | ||
| Scan Mode | Fixed Scan | Auto Scan | Fixed Scan | Auto Scan |
| Mode of Alignment | Feature, Manual | Turntable, Manual | Feature, Markers, Manual | Turntable, Markers, Manual, Turntable Coded Targets |
| Single Shot Accuracy | ≤0.01mm | ≤0.05mm | ||
| Min. Scan Volume | 30 x 30 x 30mm | |||
| Range of Single Capture | 200 x 150mm | |||
| Scan Speed | <8 seconds | <2 minutes | <4 seconds | <1 minute |
| Point Distance | 0.17 – 0.2mm | |||
| Texture | Yes | |||
| File Format | OBJ, STL, ASC, PLY | |||
| Camera Resolution | 1.3 Mega Pixels | |||
| Light Source | White Lights | |||
| Stand-off Distance | 290 ~ 480mm | |||
| Computer Requirements | 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >8 G | 1 ×USB 2.0 or 3.0 – Win7, Win8, Win10 (64 bit), Dual-core i5 or higher, >16 G | ||
| Weight (unpacked) | 2.5kg | 4.2kg | ||
| Weight (packed) | 4.9kg | 7.0kg | ||
| Dimension | 570 x 210 x 210mm | |||
| Power Supply | 50W | |||
| Input Voltage | DC: 12V, 3.33A | |||
| Calibration Board | Standard | HD | ||
| Turntable | Standard | Turntable with Markers | ||
| Load Capacity of Turntable | 5kg | |||
