• EinScan HX - Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

    $12,000.00

    The All-New Hybrid Blue Laser & LED Light Source 3D Hand Scanner from SHINING 3D

    Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

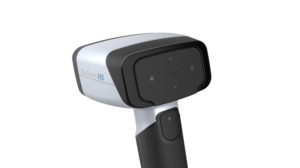

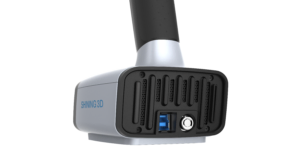

    Einscan HX 3D Scanner from Afinia 3D controls Einscan HX 3D Scanner from Afinia 3D input output

    Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

    The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring. – Minimum point distance 0.05 mm – Accuracy up to 0.04 mm under Laser Scan.

    Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

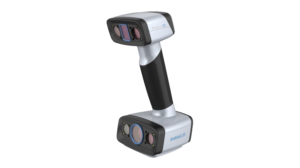

    Einscan HX 3D Scanner from Afinia 3D

    EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience. – Ergonomic design and weight of 710g

    With built-in color camera, it supports full color texture capturing and tracking by texture.

    EinScan HX Reverse Engineering Design Bundle give this hybrid light source 3D scanner major reverse engineering and CAD capabilities. (Geomagic Essentials software and Solid Edge CAD software included)

    The All-New Hybrid Blue Laser & LED Light Source 3D Hand Scanner from SHINING 3D

    Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

    Einscan HX 3D Scanner from Afinia 3D controls Einscan HX 3D Scanner from Afinia 3D input output

    Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

    The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring. – Minimum point distance 0.05 mm – Accuracy up to 0.04 mm under Laser Scan.

    Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode makes scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing and etc.

    Einscan HX 3D Scanner from Afinia 3D

    EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience. – Ergonomic design and weight of 710g

    With built-in color camera, it supports full color texture capturing and tracking by texture.

    EinScan HX Reverse Engineering Design Bundle give this hybrid light source 3D scanner major reverse engineering and CAD capabilities. (Geomagic Essentials software and Solid Edge CAD software included)

    View Brochure [PDF]

    EinScan HX Product Features



      Specifications

      Scan Mode Rapid Scan Laser Scan
      Scan Accuracy Up to 0.05mm Up to 0.04mm
      Volumetric Accuracy* 0.05+0.1mm/m 0.04+0.06mm/m
      Scan Speed 1,200,000 points/s, 20FPS 480,000 points/s, 55FPS
      Camera Frame Rate 55FPS 55FPS
      Align Mode Feature Alignment,
      Markers Alignment,
      Texture Alignment,
      Hybrid Alignment
      Markers Alignment
      Working Distance 470mm 470mm
      Depth of Field 200mm-700mm 350mm-610mm
      Max FOV 420mm*440mm 380mm*400mm
      Point Distance 0.25mm-3mm 0.05mm-3mm
      Light Source Blue LED 7 Blue Laser Crosses
      Safety Eye-safe Class I(Eye-safe)
      Built-in Color Camera Yes
      Texture Scan Yes No
      Connection Standard USB3.0
      Output Formats OBJ, STL, ASC, PLY, P3, 3MF
      Dimensions 108mm x 110mm x 237mm
      Weight 710g
      Certifications CE, FCC, ROHS, WEEE, KC
      Recommended Configuration Operating System: Windows 10, 64 bit
      Graphics card: NVIDIA GTX1080 or higher
      Video memory: ≥4GB
      Processor: Intel I7-8700 or higher
      Memory: ≥32GB

      * Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring the center of sphere under marker alignment.
