EinScan H - Hybrid LED & Infrared Light Source, Handheld, Color 3D Scanner

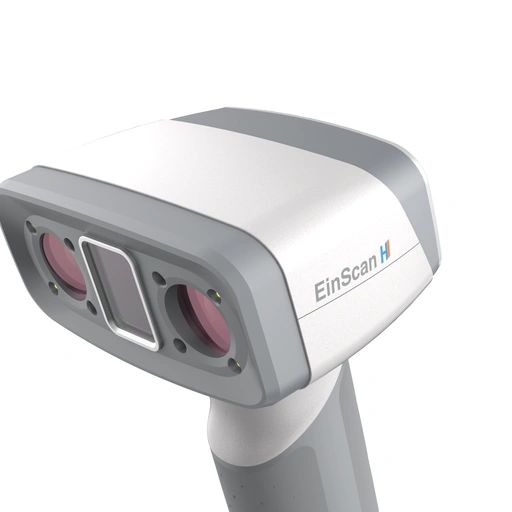

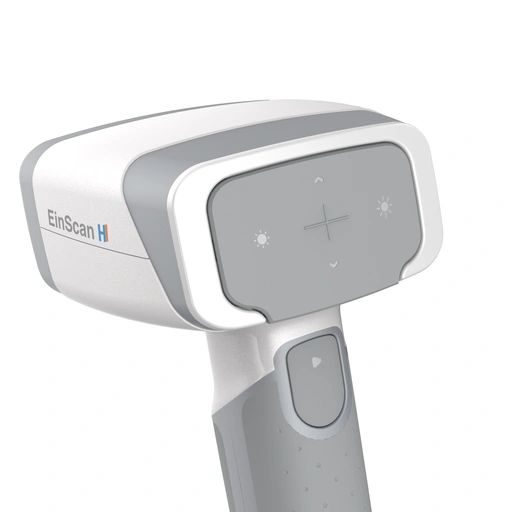

Meet the New EinScan H 3D Scanner from SHINING 3D
With strengths of technical accumulation on 3D vision technology in more than a decade, SHINING 3D is now introducing its new developed handheld 3D scanner, EinScan H. Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face scanning more comfortable without strong light. With a built-in color camera and large field of view, EinScan H provides high quality 3D data with full color ready-to-use in minutes.

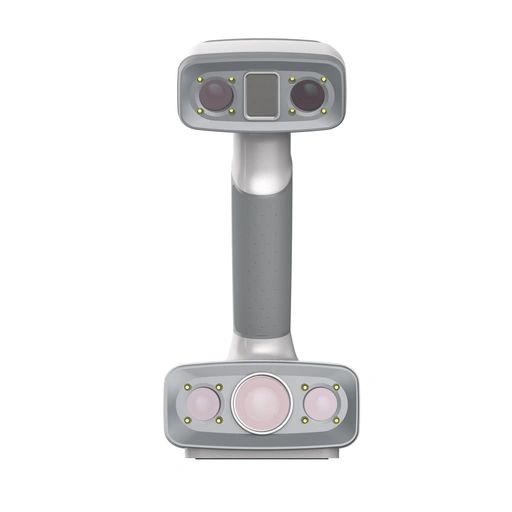

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart presetting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.
The invisible infrared light source provides a reliable solution to the problem of acquiring dark-coloured objects and enables an easy acquisition of human hair. The new face scanning mode adopts invisible infrared light enabling a safe and comfortable scanning process.
Impressive high resolution reaches 0.25 mm, EinScan H captures full geometry of objects such as artwork or furniture with fine details . The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1 mm/m improves the precision of 3D modeling in a dense points cloud or polygon meshes.
Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects. The optimzied alignment algorithm enables efficient alignment despite small movements of the scanned object or person.
The built-in color camera supports full color texture capturing and tracking by texture.
Specifications
| Scan Mode | Standard Scan | Body Scan | Face Scan |
| Light Source | White Light, visible | White Light, visible | Infrared light, invisible |
| Safety | LED light (eye-safe) | LED light (eye-safe) | CLASS 1 (eye-safe) |
| Scan Accuracy | Up to 0.05mm | Up to 0.05mm | Up to 0.6mm |
| Volumetric Accuracy* | 0.05+0.1mm/m | 0.05+0.1mm/m | / |
| Scan & Align Speed | 1,200,000points/s, 20FPS | 1,200,000points/s, 20FPS | 720,000points/s, 20FPS |
| Camera Frame Rate | 55FPS | ||
| Align Modes | Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment |
Feature Alignment | Feature Alignment |
| Working Distance | 470mm | ||
| Depth of Field | 200-700mm | 200-700mm | 200-1500mm |
| Maximum FOV | 420mm*440mm | 420mm*440mm | 780mm*900mm |
| Point distance | 0.25mm-3mm | 0.5mm-3mm | 0.5mm-3mm |
| Built-in Color Camera | Yes | ||
| Color Scanning | Support | ||

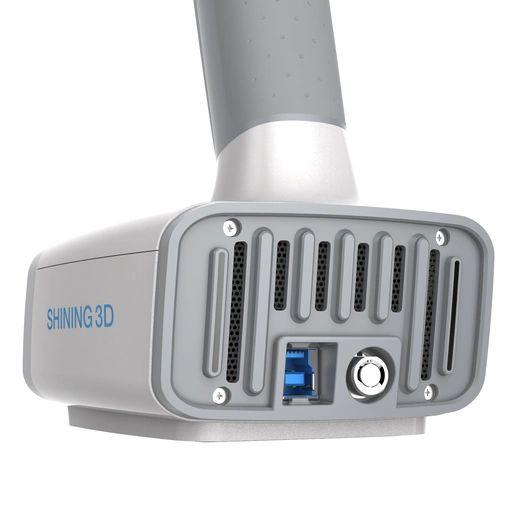

| Connection Standard | USB3.0 | ||
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF | ||
| Dimensions | 108mm x 110mm x 237mm | ||
| Weight | 703g | ||
| Certifications | CE, FCC, ROHS, WEEE, KC | ||
| Recommended Configuration | Operating System: Windows 10, 64 bit Graphics card: NVIDIA GTX1080 or higher Video memory: ≥4GB Processor: Intel I7-8700 or higher Memory: ≥32GB |
||
* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm (standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
