Dobot MG400 Collaborative Robotic Arm

$2,699.00

Small Space Occupation

Featuring the footprint of 190mm✖190mm

MG400 is compact enough to blend in any production environment.

Any space that is smaller than one piece of A4 paper, MG400 is good to go.

Professional Performance

M400 is equipped with servo motors with a high-precision absolute encoder

Coupled with a self-developed servo drive and controller, the robot's repeatability is measured up to ±0.05mm

With the vibration suppression algorithm in the controller and ensured trajectory accuracy of multi-axis motion

the repeatability bandwidth stabilization time is accelerated by 60%, and the residual vibration by 70%

Great Boost to Automation

By replacing the highly repetitive and standardized procedures

MG400 makes desktop human-collaborative work possible

helping businesses to cut down costs, and boost efficiency and quality

Specifications

Name	DOBOT MG400
Model	DT-MG-P4R07-01I
Number of Axes	4
Max Reach(mm)	400mm
Repeatability	±0.05 mm
Joint Range	J1 J2 J3 J4	±160° -25 ° ~ 85 ° -25 ° ~ 105 ° -360 ° ~ 360 °
Joint Maximum Speed	J1 J2 J3 J4	300 °/s 300 °/s 300 °/s 300 °/s
Power	100~240 V AC， 50/60 Hz
Rated Voltage	48V
Rated Power	240W
Communication Mode	TCP/IP， Modbus TCP
Installation	Counter
Weight	8kg
Base Size	190 mm × 190 mm
Environment	0 ℃~40 ℃

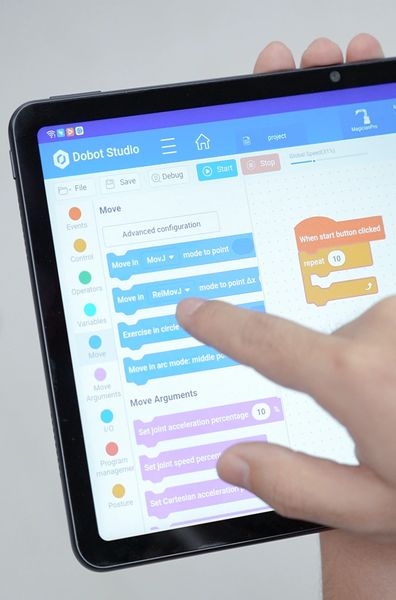

Software	DobotStudio 2020，SCStudio
