• Dobot Magician Conveyor Belt Kit

    $559.00

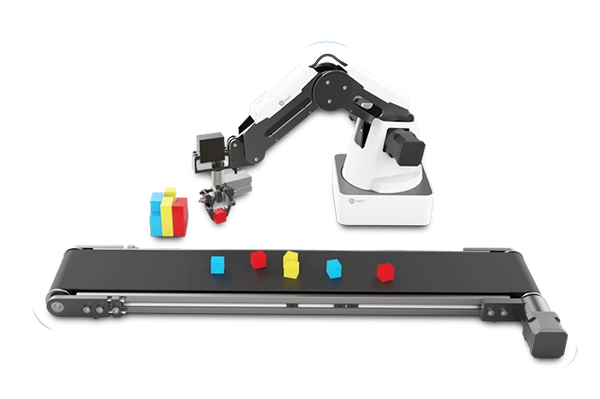

    The Conveyor Kit for Dobot Magician enables you to have a complete production line simulation. Conveyor belt with adjustable speed, distance and color sensor, combined with the powerful and programmable Dobot Magician, these are the ideal essentials for you to create a highly effective simulated production line or even to apply to actual factory scenes.

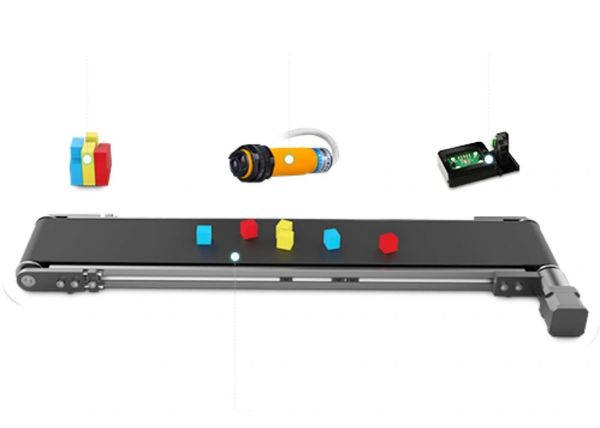

    Conveyor belt – Mini conveyor belt is a great component for building an automation process with you robot.

    Photoelectric switch – Detect whether there are objects in front of the photoelectric switch.

    Color sensor – An easy-to-use color sensor for you to categorize red, blue, and green objects.

    Wood blocks – These colorful wooden cubes are easy to grab, move, and pile, the ideal material for you to get a grip on the automation process.


    Specifications

    Conveyor Belt

    Payload 500 g
    Effective delivering distance 600 mm
    Maximum speed 120 mm/s
    Maximum acceleration 1100 mm/s²
    Net Weight 4.2 kg
    Weight (including packing) 5.34 kg
    Dimension 700 mm × 215 mm × 60 mm

    Distance measuring sensor unit

    Measurable range 20 ~ 150 mm
    Signal Analog Output
    Input 4.5 – 5.5 V

    Color recognizing snesor unit

    Input 20 ~ 150 mm
    Detectable: non-glowing object
    White LED embedded, on/o controllable

    The package includes: Mini conveyor belt, Infrared distance sensor, Color sensor, Toolkit and Instructions.
