• Dobot Magician 4-Axis Robot Education Package with Conveyor

    $3,699.00

    Dobot Education Bundle #3 includes:

    (2) Dobot 4-axis robotic arms

    (1) Dobot Magician Micro Production

    All-in-One Robot Education

    A truly cutting-edge robotic arm—it can 3D print, manipulate objects, write and draw. It has a graphical programming environment, multiple tool heads, and the capability to work with the Arduino platform. It’s a robot for your creativity and desire to develop. With Dobot’s exclusive tutorials and lessons, the Magician is the ideal way to learn about robotic arms, hardware development, coding and automation.

    Best multi-functional robotic arm

    The advantages of high precision (0.2mm) and switchable tool heads allow for many uses: 3D printing, pick and place, write and draw, and more. Combining them brings out even more fun, learning, and creativity through unlimited possibilities. Also, Dobot Magician is the first consumer-grade robotic arm that can 3D print.

    Dobot Magician from Afinia 3D - 3d printing Dobot Magician from Afinia 3D - expansion ports Dobot Magician from Afinia 3D - graphical programming Dobot Magician from Afinia 3D - high precision Dobot Magician from Afinia 3D - teach & playback

    Cross-subject learning tool

    Dobot Magician is an integration of programming, mechanics, electronics, and automation. It’s a great STEAM teaching device that strengthens knowledge across multiple subjects, through a high precision and user-friendly UI, enjoyable functions, and unlimited developing possibilities. Dobot Magician’s immersive and explorative experience increases interest in science and technology.

    Dobot Magian from Afinia Label - Block building code

    Graphical programming environment

    Dobot Magician has the most multi-functional robotic arm user interface on the market. In addition to scripting (Python), it also has a graphical programming environment, where you can write codes by simply piling up blocks!

    Highly extendable — Makers’ first choice

    A standardized end effector port allows you to use and create all kinds of head tools. 13 extension ports cover digital/analog I/O, power source, motor and serial port communication, and API access along communication protocols. With our official developer tutorial, you can DIY your own sensor-based accessories, creating more smart ways to use a robotic arm.

    Bringing robotic arms to all desktops

    Dobot is a leading robot arm solution provider. Established in July 2015, Dobot has developed three robotic arm products, targeting both consumer and industrial uses.

    Available accessories

    Expand Dobot Magician’s capabilities with a Conveyor Belt or Linear Slide Rail.



    Specifications

    Number of Axes: 4 Payload 500g
    Max. Reach: 320 mm Position Repeatability (Control) 0.2 mm
    Communication: USB \ WIFI \ Bluetooth Power Supply 100 – 240 V, 50/60 Hz
    Power In: 12 V / 7 A DC Consumption 60W Max
    Working Temperature -10℃ – 60℃

    Axis Movement

    Axis Range Max Speed
    (250 g workload)
    Joint 1 base -90° to +90° 320 °/s
    Joint 2 rear arm 0° to +85° 320 °/s
    Joint 3 forearm -10° to +95° 320 °/s
    Joint 4 rotation servo -90° to +90° 480 °/s

    Physical

    Net Weight 4 Kg
    Base Dimension(Footprint) 158 mm × 158 mm
    Material Aluminum Alloy 6061, ABS Engineering Plastic
    Controller Dobot Integrated Controller
    Robot Mounting Desktop
    Packing Size(L x W x H) 307 mm × 224 mm × 330 mm

    Applications

    Software DobotStudio, Repetier Host, GrblController 3.6,
    DobotBlockly (Visual Programing editor)
    SDK(Software Develop Kit) Communication Protocol, Dobot Program Library
    Extensible I/0 Interfaces 1) I/O × 10  (Configurable as Analog Input or PWM Output)
    2) Controllable 12V Power output × 4
    3) Communication Interface UART, Reset, STOP, 12 V, 5 V and two I/O included
    4) Stepper × 2

    Endeffector

    3D Printer Kit Print Size (L × W × H )
    Material
    Resolution
    150mm × 150mm × 150mm
    PLA
    0.1mm

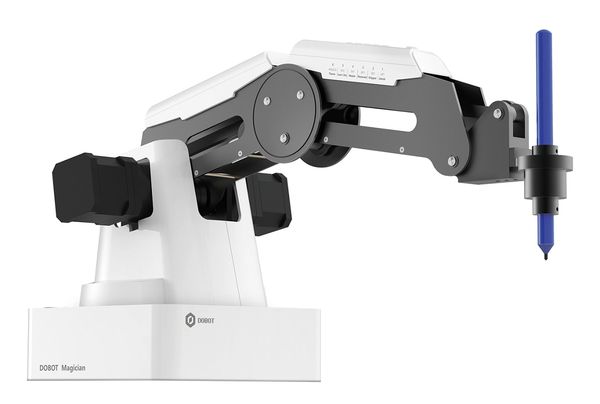

    Pen holder Pen Diameter 10 mm
    Vacuum Suction Cap Cap Diameter
    Pressure
    20 mm
    -35 Kpa
    Gripper Range
    Drive Type
    Force
    27.5 mm
    Pneumatic
    8 N
